• سیتور الکتریک در زمینه واردات و توزیع فیوزهای صنعتی در امپرها و ولتاژ های مختلف فعالیت دارد.
frontpage-im525age2-3

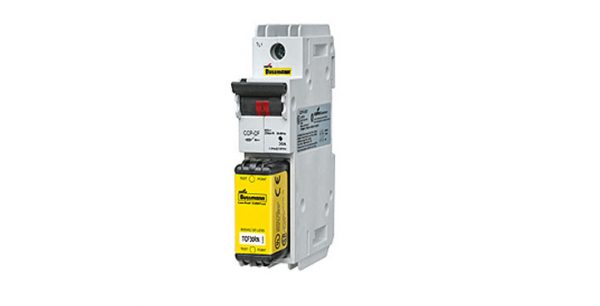

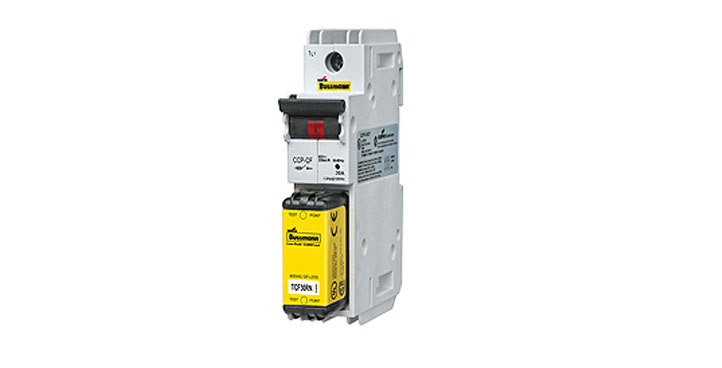

جعبه فیوزCUBEFuse CCP_CF

تماس بگیرید

دسته:

Product Description

Box Lug Connection: 18-6 AWG single or dual rated, solid or stranded – 75°C or higher – Cu only, 4 AWG single – 75°C or higher – Cu only.
• Fork Terminal Connection: Max. 30A suitable for use with #8-32 UNC screw.
• Box Lug and fork terminal suitable for line, load or accessory connection.
• Torque 0-60A: 18-10 AWG 20 lb-In, 8-4 AWG 35 lb-In.
• Torque 100A: 18-10 AWG Single 25 lb-In, 8-2 AWG Single 35 lb-In, 1 AWG Single 40 lb-In, 6 AWG Dual 45 lb-In
• Lockout/tag out: 4mm shank lock or standard pin-out devices.
• 35mm DIN rail mount.
• Local indication minimum operating voltage: 90Vac/115Vdc.
